Animal Actor Follow WayPoints Plugin¶

In these tutoiral we are going to used a animated dog as a gazebo actor & make it follow waypoints & animate walking dog.

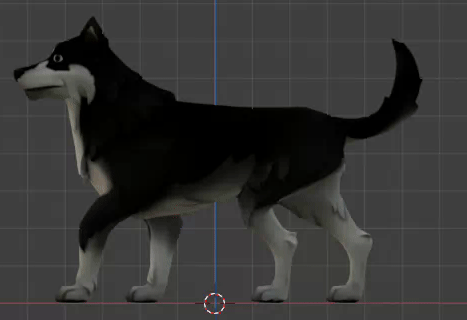

dog moving in place

Download Blender Models

Good Youtube Videos on Modelling & Animal Animation: link1, link2

Code Explain¶

reakted api: gazebo components, Actor Wrapper Class, Actor.cc code in github

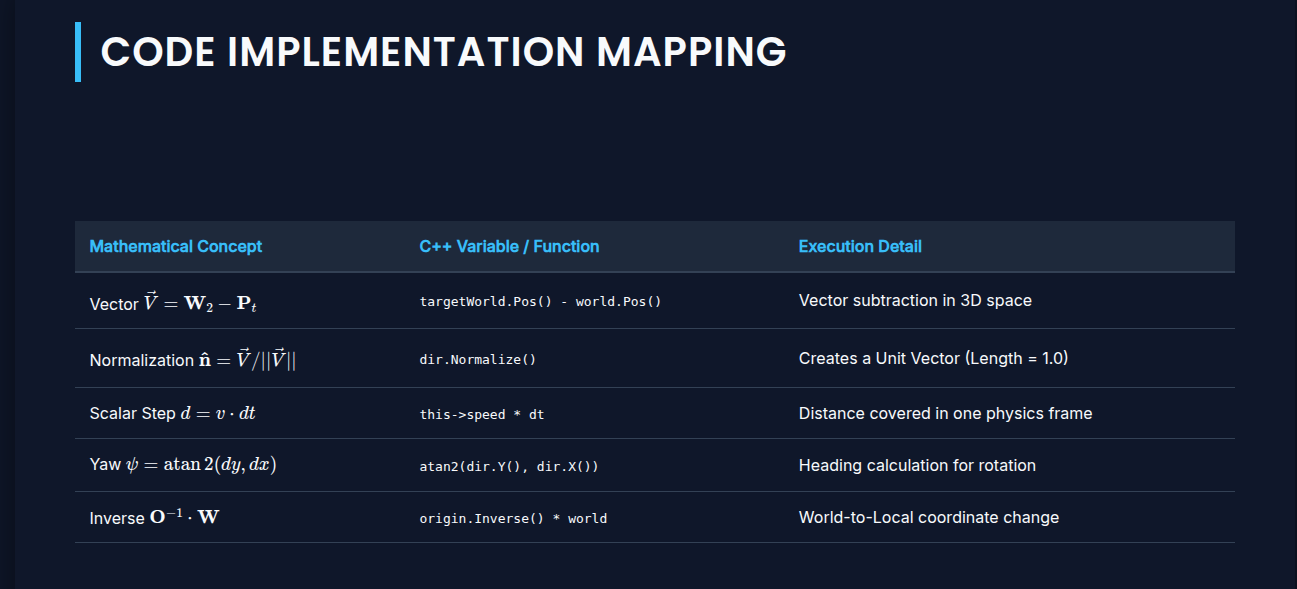

code map

1) How the actor’s world pose is computed¶

  auto originOpt = actor.Pose(_ecm);
  if (!originOpt)
  {
    if (doPrint)
      gzdbg << "[ActorWaypointSystem] Waiting for actor origin Pose component...\n";
    return;
  }
  const math::Pose3d origin = *originOpt;

  // TrajectoryPose
  math::Pose3d traj = math::Pose3d::Zero;
  if (auto trajComp = _ecm.Component<components::TrajectoryPose>(this->actorEntity))
    traj = trajComp->Data();

  // Derive current actor world pose from origin and trajectory
  math::Pose3d world = origin * traj;

Instead of:

world = origin ∘ traj

Read it as:

“Start at the origin pose, then apply the trajectory pose on top of it.”

In words:

The actor has an origin pose that already lives in the world.
The actor also has a trajectory pose that describes motion relative to that origin.
To know where the actor actually is in the world:
Take the origin pose
Apply the trajectory pose’s translation and rotation relative to that origin

Result: - You get the final world position and orientation of the actor.

Equivalent procedural explanation:

Rotate the trajectory position by the origin rotation
Add that rotated position to the origin position
Multiply the origin rotation by the trajectory rotation

2) Direction toward a waypoint¶

//current waypoint target
const math::Pose3d targetWorld = this->waypoints[this->currentWaypoint];

// Direction in world frame
math::Vector3d dir = targetWorld.Pos() - world.Pos();
dir.Z(0);                       // ignore Z for motion
const double dist = dir.Length();

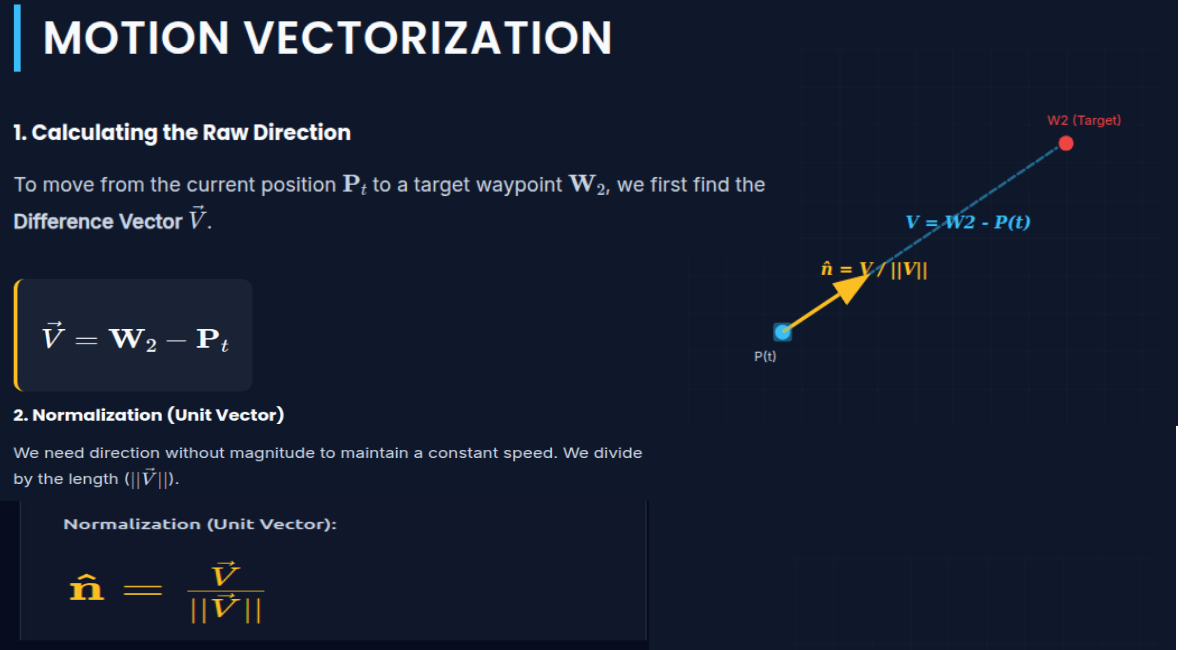

directional vector

Instead of vector subtraction notation, read it as:

“Direction = target position minus current position.”

In words:

Look at where the actor is right now
Look at where the waypoint is
Draw an arrow from the actor to the waypoint
That arrow is the direction vector

Then:

Set the vertical (Z) part of that arrow to zero
→ movement is only on the ground plane

4) Distance To WayPoint¶

// Advance waypoint
if (dist < 0.05)
{
this->currentWaypoint = (this->currentWaypoint + 1) % this->waypoints.size();
if (doPrint)
    gzdbg << "[ActorWaypointSystem] Reached waypoint, advancing to wp="
        << this->currentWaypoint << "\n";
return;
}

if (dist > 1e-9)
dir.Normalize();

Instead of:

dist = ||dir||

Read it as:

“Distance is the length of the direction arrow.”

In words:

Measure how long the arrow from actor to waypoint is
That number tells you how far away the waypoint is

If the distance is very small (less than 5 cm):

Consider the waypoint reached
Switch to the next waypoint

Instead of:

dir̂ = dir / ||dir||

Read it as:

“Scale the direction arrow so its length becomes exactly 1.”

In words:

Keep the direction the same
Change the arrow length to one unit
This makes it usable for movement at a constant speed

6) How far the actor moves this update¶

// Step in world
  world.Pos() += dir * step;

  // Keep a constant height (or waypoint height) + offset
  world.Pos().Z() = targetWorld.Pos().Z() + this->zOffset;

  // Face direction
  const double yaw = atan2(dir.Y(), dir.X());
  world.Rot() = math::Quaterniond(0, 0, yaw + this->yawOffset);

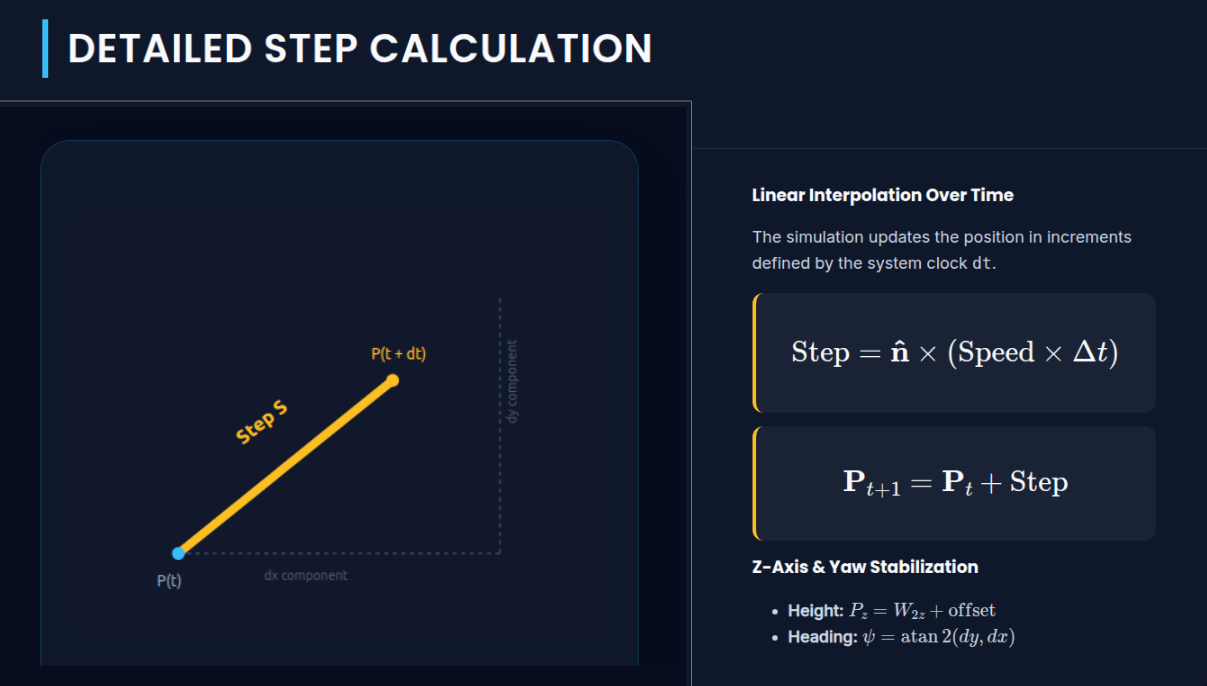

step

Instead of:

step = speed × dt

Read it as:

“Distance moved this frame equals speed multiplied by elapsed time.”

In words:

Speed is meters per second
dt is seconds since the last update
Multiply them to get meters moved this update

Instead of writing a Z equation, read it as:

“Ignore vertical movement and snap the actor’s height to the waypoint height plus an offset.”

In words:

Z is not integrated over time
Every update:
Actor Z = waypoint Z + configured offset

This guarantees stable vertical placement.

Instead of:

yaw = atan2(dy, dx)

Read it as:

“Compute the angle that points in the same direction as the movement arrow.”

In words:

Look at the direction arrow in the X–Y plane
Find the angle it makes relative to the X axis
That angle becomes the actor’s yaw

Then:

Add a yaw offset if configured
Set roll and pitch to zero

7) Converting a world pose back into trajectory space¶

  // Convert desired world pose -> trajectory (relative to origin)
  // world = origin * traj  =>  traj = origin^-1 * world
  const math::Pose3d trajCmd = origin.Inverse() * world;

  // Set manual trajectory pose
  actor.SetTrajectoryPose(_ecm, trajCmd);

  // Force notify that this component changed (this is the key)
  _ecm.SetChanged(this->actorEntity,
                  gz::sim::components::TrajectoryPose::typeId,
                  gz::sim::ComponentState::OneTimeChange);

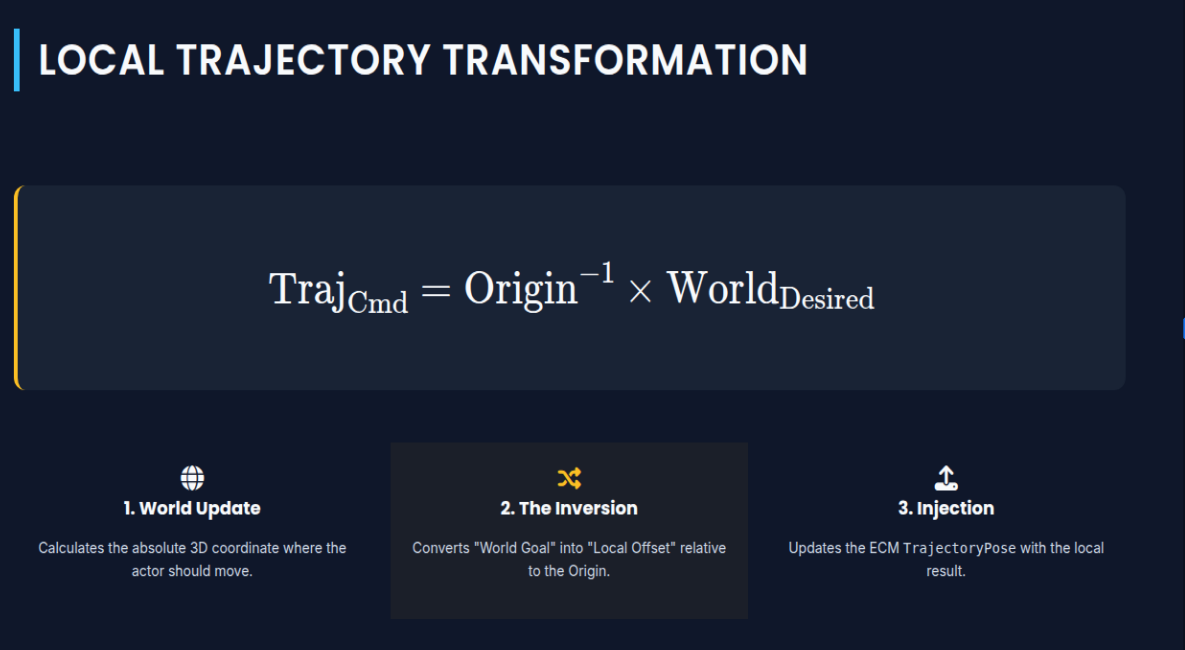

world to local

Instead of:

trajCmd = origin⁻¹ ∘ world

Read it as:

“Remove the origin pose from the world pose to get a trajectory-relative pose.”

In words:

You already know where the actor should be in the world.
But the system only accepts trajectory poses (relative to origin).
So you:
Undo the origin’s rotation and translation
Express the world pose relative to the origin frame

This answers the question:

“What trajectory pose would produce this world pose if applied on top of the origin?”

8) Full update logic in plain English¶

Each simulation update does the following:

Read the actor’s origin pose
Read the actor’s trajectory pose
Combine them to get the current world pose
Compute a flat (X–Y) direction toward the current waypoint
Measure distance to the waypoint
If close enough:
Advance to the next waypoint
Otherwise:
Move forward by speed × dt
Set height to waypoint Z + offset
Rotate the actor to face the movement direction
Convert the resulting world pose back into a trajectory pose
Write that trajectory pose back to the ECS

Plugin¶

.sdf file plugin path

<include>
  <name>dog_walk</name>
  <pose>0 0 0.01 0 0 0</pose>
  <uri>model://dog_walk</uri>

  <plugin
    filename="AnimalActorFollowWaypoints"
    name="gz::sim::AnimalActorFollowWaypoints">

    <waypoint>0 0 0 0 0 0</waypoint>
    <waypoint>0 8 0 0 0 0</waypoint>
    <waypoint>8 8 0 0 0 1.57</waypoint>
    <waypoint>0 8 0 0 0 3.14</waypoint>

    <speed>0.1</speed>
    <yaw_offset>0.0</yaw_offset>
    <z_offset>0.01</z_offset>

  </plugin>
</include>

.hh file

#pragma once

#include <gz/sim/System.hh>
#include <gz/sim/Entity.hh>
#include <gz/sim/EntityComponentManager.hh>

#include <gz/sim/components/Actor.hh>
#include <gz/sim/components/Pose.hh>
#include <gz/sim/components.hh>
#include <gz/sim/Actor.hh>

#include <gz/math/Pose3.hh>
#include <gz/plugin/Register.hh> //for GZ_ADD_PLUGIN_ALIAS()

#include <chrono>
#include <cmath>
#include <vector>

namespace gz::sim
{

class AnimalActorFollowWaypoints :
  public System,
  public ISystemConfigure,
  public ISystemPreUpdate
{
public:
  void Configure(
    const Entity &_entity,
    const std::shared_ptr<const sdf::Element> &_sdf,
    EntityComponentManager &_ecm,
    EventManager &) override;

  void PreUpdate(
    const UpdateInfo &_info,
    EntityComponentManager &_ecm) override;

private:
  Entity actorEntity{kNullEntity};

  std::vector<math::Pose3d> waypoints;
  size_t currentWaypoint{0};
  std::chrono::steady_clock::time_point lastWallPrint{};
  double yawOffset;
  double zOffset{0.0};


  double speed{1.0}; // meters / second
};

}

.cc file

#include "tutorial_gazebo_plugins/AnimalActorFollowWaypoints.hh"

#include <gz/common/Console.hh>
#include <gz/math/Vector3.hh>

using namespace gz;
using namespace sim;

//////////////////////////////////////////////////
void AnimalActorFollowWaypoints::Configure(
  const Entity &,
  const std::shared_ptr<const sdf::Element> &_sdf,
  EntityComponentManager &_ecm,
  EventManager &)
{
  // Find actor
  _ecm.Each<components::Actor>(
    [&](const Entity &_ent, const components::Actor *) -> bool
    {
      this->actorEntity = _ent;
      return false;
    });

  if (this->actorEntity == kNullEntity)
  {
    gzerr << "[AnimalActorFollowWaypoints] No Actor found\n";
    return;
  }

   if (!_ecm.Component<components::Actor>(this->actorEntity))
  {
    gzerr << "[AnimalActorFollowWaypoints] Plugin attached to a non-actor entity\n";
    return;
  }

  // Read waypoints
  for (auto elem = _sdf->FindElement("waypoint");
       elem; elem = elem->GetNextElement("waypoint"))
  {
    this->waypoints.push_back(elem->Get<math::Pose3d>());
  }

  if (_sdf->HasElement("speed"))
    this->speed = _sdf->Get<double>("speed");

  if (this->waypoints.empty())
    gzerr << "[AnimalActorFollowWaypoints] No waypoints provided\n";

  if (_sdf->HasElement("yaw_offset"))
    this->yawOffset = _sdf->Get<double>("yaw_offset");

  if (_sdf->HasElement("z_offset"))
    this->zOffset = _sdf->Get<double>("z_offset");

  gzdbg << "[AnimalActorFollowWaypoints] Configure: actorEntity=" << this->actorEntity
      << " waypoints=" << this->waypoints.size()
      << " speed=" << this->speed << "\n";
}

void AnimalActorFollowWaypoints::PreUpdate(
  const UpdateInfo &_info,
  EntityComponentManager &_ecm)
{
  if (_info.paused)
    return;

  if (this->waypoints.empty())
    return;

  // Throttle debug prints (~1 Hz)
  const auto now = std::chrono::steady_clock::now();
  const bool doPrint =
    (this->lastWallPrint.time_since_epoch().count() == 0) ||
    (now - this->lastWallPrint > std::chrono::seconds(1));
  if (doPrint)
    this->lastWallPrint = now;


  //
  gz::sim::Actor actor(this->actorEntity);
  if (!actor.Valid(_ecm))
  {
    if (doPrint)
      gzerr << "[AnimalActorFollowWaypoints] PreUpdate: entity " << this->actorEntity
            << " not a valid Actor\n";
    return;
  }

  // Origin pose (trajectory reference)
  auto originOpt = actor.Pose(_ecm);
  if (!originOpt)
  {
    if (doPrint)
      gzdbg << "[AnimalActorFollowWaypoints] Waiting for actor origin Pose component...\n";
    return;
  }
  const math::Pose3d origin = *originOpt;

  // TrajectoryPose
  math::Pose3d traj = math::Pose3d::Zero;
  if (auto trajComp = _ecm.Component<components::TrajectoryPose>(this->actorEntity))
    traj = trajComp->Data();

  // Derive current actor world pose from origin and trajectory
  math::Pose3d world = origin * traj;

  //current waypoint target
  const math::Pose3d targetWorld = this->waypoints[this->currentWaypoint];

  // Direction in world frame
  math::Vector3d dir = targetWorld.Pos() - world.Pos();
  dir.Z(0);                       // ignore Z for motion
  const double dist = dir.Length();

  if (doPrint)
  {
    gzdbg << "[AnimalActorFollowWaypoints] Tick entity=" << this->actorEntity
          << " wp=" << this->currentWaypoint << "/" << this->waypoints.size()
          << " dt=" << std::chrono::duration<double>(_info.dt).count()
          << " origin.pos=" << origin.Pos()
          << " world.pos=" << world.Pos()
          << " traj.pos=" << traj.Pos()
          << " target.pos=" << targetWorld.Pos()
          << " dist=" << dist
          << "\n";
  }

  // Advance waypoint
  if (dist < 0.05)
  {
    this->currentWaypoint = (this->currentWaypoint + 1) % this->waypoints.size();
    if (doPrint)
      gzdbg << "[AnimalActorFollowWaypoints] Reached waypoint, advancing to wp="
            << this->currentWaypoint << "\n";
    return;
  }

  if (dist > 1e-9)
    dir.Normalize();

  //this->speed * dt means  Distance covered in one physics frame
  const double dt = std::chrono::duration<double>(_info.dt).count();
  const double step = this->speed * dt;

  // Step in world
  world.Pos() += dir * step;

  // Keep a constant height (or waypoint height) + offset
  world.Pos().Z() = targetWorld.Pos().Z() + this->zOffset;

  // Face direction
  const double yaw = atan2(dir.Y(), dir.X());
  world.Rot() = math::Quaterniond(0, 0, yaw + this->yawOffset);

  // Convert desired world pose -> trajectory (relative to origin)
  // world = origin * traj  =>  traj = origin^-1 * world
  const math::Pose3d trajCmd = origin.Inverse() * world;

  // Set manual trajectory pose
  actor.SetTrajectoryPose(_ecm, trajCmd);

  // Force notify that this component changed (this is the key)
  _ecm.SetChanged(this->actorEntity,
                  gz::sim::components::TrajectoryPose::typeId,
                  gz::sim::ComponentState::OneTimeChange);


  if (doPrint)
  {
    gzdbg << "[AnimalActorFollowWaypoints] SetTrajectoryPose traj(before)=" << traj.Pos()
          << " trajCmd(after)=" << trajCmd.Pos()
          << " world(after)=" << world.Pos()
          << " yaw=" << yaw
          << "\n";
  }
}
// Register the plugin with Gazebo Sim
GZ_ADD_PLUGIN(gz::sim::AnimalActorFollowWaypoints,
              gz::sim::System,
              gz::sim::ISystemConfigure,
              gz::sim::ISystemPreUpdate)

GZ_ADD_PLUGIN_ALIAS(gz::sim::AnimalActorFollowWaypoints,
                    "gz::sim::systems::AnimalActorFollowWaypoints")

GZ_SIM_RESOURCE_PATH added so that gazebo sim can find model path

launch file

from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, ExecuteProcess
from launch.substitutions import LaunchConfiguration, FindExecutable
from launch_ros.actions import Node
from launch import LaunchDescription
from launch.actions import SetEnvironmentVariable, IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
import os
from ament_index_python.packages import get_package_share_directory
from launch.substitutions import PathJoinSubstitution

from launch_ros.substitutions import FindPackageShare

def generate_launch_description():

    plugin_pkg_path = FindPackageShare('tutorial_gazebo_plugins')

    ros_pkg_path = FindPackageShare('yt_tutorial_gazebo_ros')

    set_plugin_path = SetEnvironmentVariable(
    'GZ_SIM_SYSTEM_PLUGIN_PATH',
    PathJoinSubstitution([plugin_pkg_path, 'plugins'])
    )

    # to load models
    set_model_path = SetEnvironmentVariable(
    'GZ_SIM_RESOURCE_PATH',
    PathJoinSubstitution([ros_pkg_path, 'models'])
    )

    world_path = os.path.join(
        get_package_share_directory('yt_tutorial_gazebo_ros'),
        'worlds',
        'animal_actor_follow_waypoints.sdf',
    )

    ros_gz_sim_share = get_package_share_directory('ros_gz_sim')

    gz_sim = IncludeLaunchDescription(
        PythonLaunchDescriptionSource(
            os.path.join(ros_gz_sim_share, 'launch', 'gz_sim.launch.py')
        ),
        launch_arguments={
            # see next section for -v
            'gz_args': f'-r -v4 {world_path}',
        }.items(),
    )




    return LaunchDescription([set_plugin_path,set_model_path, gz_sim])
