Light Control System Plugin¶

In this tutorial we make a light control system plugin. Will use 2 spot light to make disco light effect

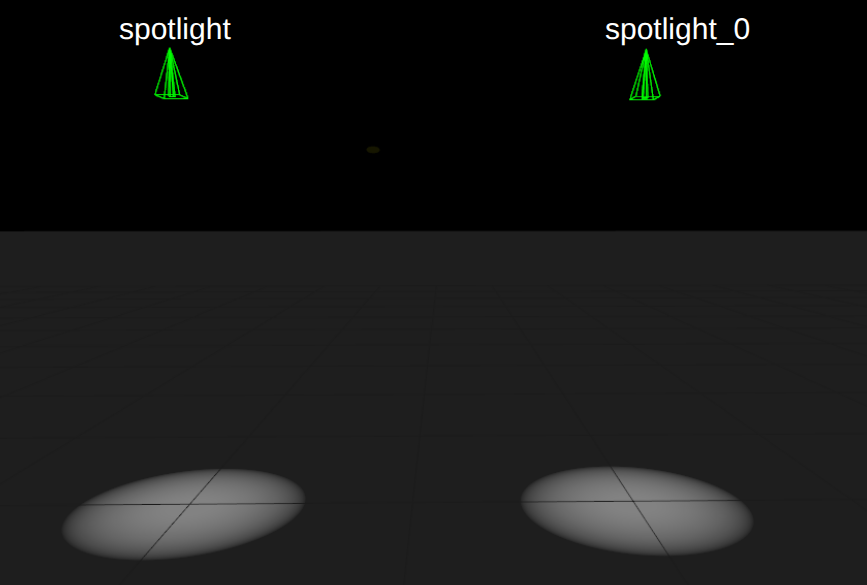

light

Light Control Logic¶

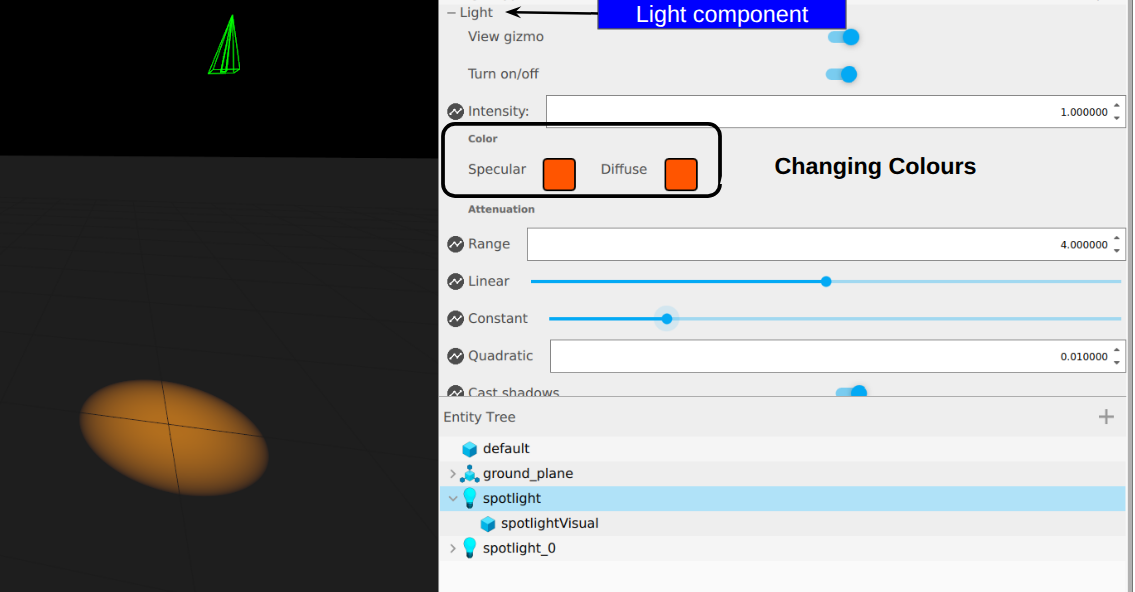

gz light components

Read the 2 light component current value
change only the diffuse & specular colour rgb value
Update the colours on every loop

How Colour Change works¶

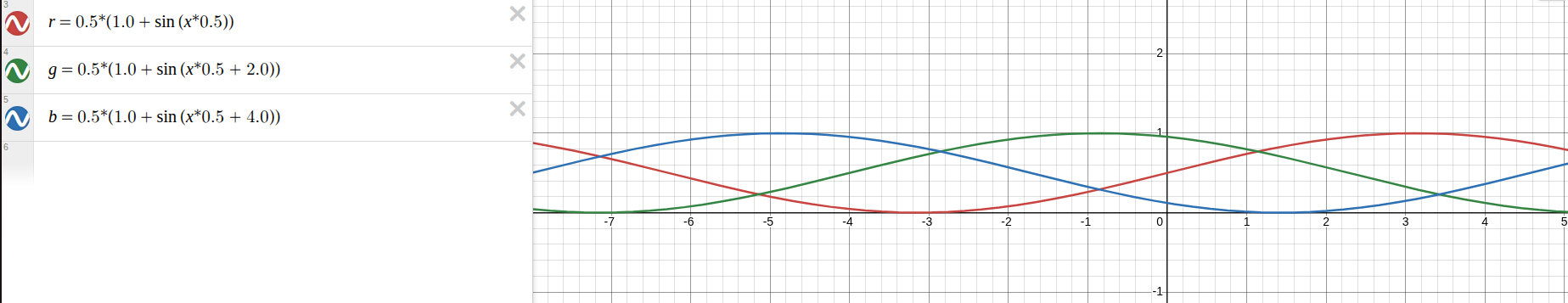

light graph

    // Animated RGB in [0,1]
    const double r = 0.5 * (1.0 + std::sin(this->time * 0.5));
    const double g = 0.5 * (1.0 + std::sin(this->time * 0.5 + 2.0));
    const double b = 0.5 * (1.0 + std::sin(this->time * 0.5 + 4.0));
    gz::math::Color newColor(r, g, b, 1.0);

How To Get Multiple Entities¶

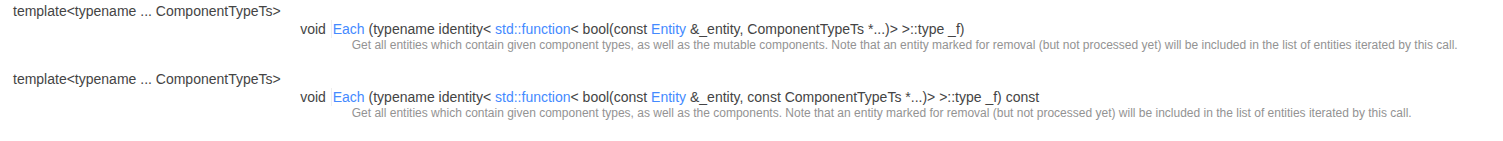

each

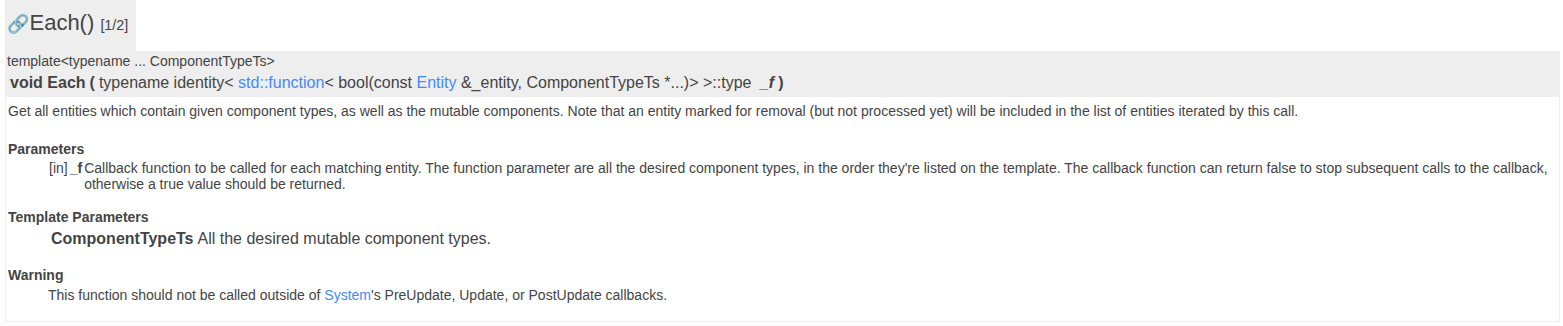

detail each

related api in EntityComponentManager class

//check for such components which has Light, Name components
_ecm.Each<components::Light, components::Name>(
    [&](const Entity &_entity,
        const components::Light *,
        const components::Name *_name) -> bool
    {
    this->lightEntites.push_back(_entity);
    // gzmsg << "Found light: " << _name->Data()
    //       << " (entity " << _entity << ")\n";
    return true;
    });

Update Component Values¶

lets first see the all available components for light

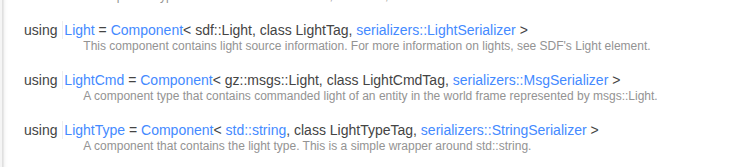

light components

LightCmd has Cmd we can use it command/control the light plugin

Convert Data Type¶

what is the data type of it?

components::Light - sdf::Light data type
components::LightCmd - gz::msgs::Light data type

both has a different data type means we need to convert between them

convert msg

related api in gz::sim ,gz::msgs api

auto lightComp = _ecm.Component<components::Light>(e);
const sdf::v14::Light &sdfLight = lightComp->Data();

//convert sdf light msg to gz light msg
gz::msgs::Light msg = gz::sim::convert<gz::msgs::Light>(sdfLight);

Set New Colour¶

Inside gz::sim::light class

diffuses & specular both msg are of type gz::msgs::Color

gz::math::Color newColor(r, g, b, 1.0);

//using Set() to set the fields of light msg
gz::msgs::Set(msg.mutable_diffuse(),  newColor);
gz::msgs::Set(msg.mutable_specular(), newColor);

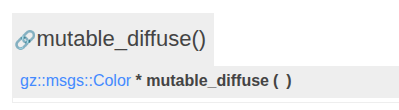

diffusion msg

specular msg

that is why we can use gz::msgs::Set() to set gz::math::Color values

$math colour$

set the LightCmd Component, its same method that we dicussed in MoveModel System Plugin

//method1
// auto cmdComp = _ecm.Component<components::LightCmd>(e);
// if (!cmdComp)
//   _ecm.CreateComponent(e, components::LightCmd(msg));
// else
// {

//   cmdComp->Data() = msg;


// }

//method2
_ecm.SetComponentData<components::LightCmd>(e,msg);

in case of light we need to trigger update so that rendering system knows it updated but it case of all physics related plugin it auto updates like in case of Move Model velocity get auto updated.

    _ecm.SetChanged(e,
                    components::LightCmd::typeId,
                    ComponentState::PeriodicChange);
                    /// PeriodicChange ->changing periodically,ok to drop few samples

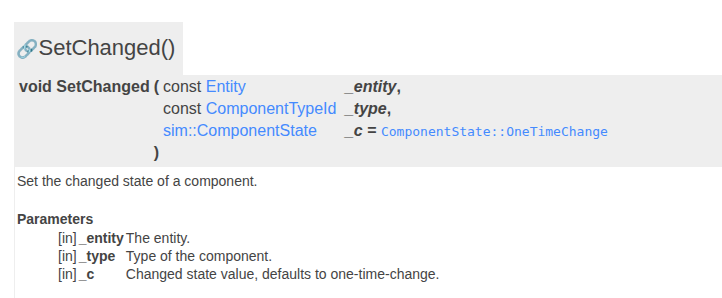

set_changed

Full Plugin¶

plugin .sdf file

<!-- custom plugin to make disco light effect-->
<plugin
    filename="LightControl"
    name="gz::sim::LightControl">
</plugin>

.hh file

#ifndef LIGHT_CONTROL_PLUGIN_HH_
#define LIGHT_CONTROL_PLUGIN_HH_

#include <gz/sim/System.hh>
#include <gz/sim/components/Name.hh>
#include <gz/sim/components/Light.hh>
#include <gz/math/Color.hh>
#include <gz/sim/Light.hh>

#include <vector>

namespace gz
{
namespace sim
{
class LightControl : public System, public ISystemPreUpdate
{
public:
  // Constructor
  LightControl() = default;

  // ISystemPreUpdate method
  void PreUpdate(const UpdateInfo &_info, EntityComponentManager &_ecm) override;

private:
  // Function to find the light entity by name
  void FindLightEntities(EntityComponentManager &_ecm);

  // Time accumulator for color cycling
  double time = 0.0;

  std::vector<Entity> lightEntites; //list of light entity
};
}  // namespace sim
}  // namespace gz

#endif

.cc file

#include "tutorial_gazebo_plugins/LightControl.hh"

#include <gz/plugin/Register.hh>

#include <gz/msgs/light.pb.h>
#include <gz/msgs/Utility.hh>

#include <gz/sim/components/Light.hh>
#include <gz/sim/components/LightCmd.hh>
#include <gz/sim/components/Name.hh>

#include <sdf/Light.hh>
#include <gz/sim/Conversions.hh>


using namespace gz;
using namespace gz::sim;


// Find all light entities
void LightControl::FindLightEntities(EntityComponentManager &_ecm)
{
  this->lightEntites.clear();


  //check for such components which has Light, Name components
  _ecm.Each<components::Light, components::Name>(
      [&](const Entity &_entity,
          const components::Light *,
          const components::Name *_name) -> bool
      {
        this->lightEntites.push_back(_entity);
        // gzmsg << "Found light: " << _name->Data()
        //       << " (entity " << _entity << ")\n";
        return true;
      });
}

// ---------------------------------------------------------------------
void LightControl::PreUpdate(const UpdateInfo &_info,
                             EntityComponentManager &_ecm)
{
   if (_info.paused)
    return;

  this->time += std::chrono::duration_cast<std::chrono::duration<double>>(
                    _info.dt)
                    .count();

  this->FindLightEntities(_ecm);
  if (this->lightEntites.empty())
    return;

  //Un comment to see the flicker effect
  // Flicker (no RNG): irregular brightness 0.15..1.0
  // constexpr double kTwoPi = 6.283185307179586;
  // const double t = this->time;

  // double flicker = 0.55
  //   + 0.25 * std::sin(kTwoPi * 17.0 * t)
  //   + 0.15 * std::sin(kTwoPi * 23.0 * t + 1.7)
  //   + 0.10 * std::sin(kTwoPi * 31.0 * t + 0.3);


  // flicker = std::clamp(flicker, 0.15, 1.0);

  // // // Animated RGB in [0,1]
  // const double r = 0.5 * (1.0 + std::sin(this->time * 0.5)) * flicker;
  // const double g = 0.5 * (1.0 + std::sin(this->time * 0.5 + 2.0)) * flicker;
  // const double b = 0.5 * (1.0 + std::sin(this->time * 0.5 + 4.0)) * flicker;
  // gz::math::Color newColor(r, g, b, 1.0);

  // Animated RGB in [0,1]
  const double r = 0.5 * (1.0 + std::sin(this->time * 0.5));
  const double g = 0.5 * (1.0 + std::sin(this->time * 0.5 + 2.0));
  const double b = 0.5 * (1.0 + std::sin(this->time * 0.5 + 4.0));
  gz::math::Color newColor(r, g, b, 1.0);



  for (const Entity e : this->lightEntites)
  {

    //read data of Light
    auto lightComp = _ecm.Component<components::Light>(e);
    if (!lightComp)
      continue;

    const sdf::v14::Light &sdfLight = lightComp->Data();

    //convert sdf light msg to gz light msg
    gz::msgs::Light msg = gz::sim::convert<gz::msgs::Light>(sdfLight);

    //using Set() to set the fields of light msg
    gz::msgs::Set(msg.mutable_diffuse(),  newColor);
    gz::msgs::Set(msg.mutable_specular(), newColor);

    //method1
    // auto cmdComp = _ecm.Component<components::LightCmd>(e);
    // if (!cmdComp)
    //   _ecm.CreateComponent(e, components::LightCmd(msg));
    // else
    // {

    //   cmdComp->Data() = msg;


    // }

    //method2
    _ecm.SetComponentData<components::LightCmd>(e,msg);

    // in case of light we need to trigger update so that rendering system knows it updated
    _ecm.SetChanged(e,
                    components::LightCmd::typeId,
                    ComponentState::PeriodicChange);
                    /// PeriodicChange ->changing periodically,ok to drop few samples
  }
}

// Register the plugin
GZ_ADD_PLUGIN(
    LightControl,
    gz::sim::System,
    LightControl::ISystemPreUpdate)

GZ_ADD_PLUGIN_ALIAS(LightControl, "gz::sim::LightControl")

flicker Effect (Disco effect)¶

making light intensity low/light give the disco effect

//Un comment to see the flicker effect
// Flicker (no RNG): irregular brightness 0.15..1.0
constexpr double kTwoPi = 6.283185307179586;
const double t = this->time;

double flicker = 0.55
  + 0.25 * std::sin(kTwoPi * 17.0 * t)
  + 0.15 * std::sin(kTwoPi * 23.0 * t + 1.7)
  + 0.10 * std::sin(kTwoPi * 31.0 * t + 0.3);


flicker = std::clamp(flicker, 0.15, 1.0);

// // Animated RGB in [0,1]
const double r = 0.5 * (1.0 + std::sin(this->time * 0.5)) * flicker;
const double g = 0.5 * (1.0 + std::sin(this->time * 0.5 + 2.0)) * flicker;
const double b = 0.5 * (1.0 + std::sin(this->time * 0.5 + 4.0)) * flicker;
gz::math::Color newColor(r, g, b, 1.0);

Other Way Possible Using Light Class Doesn't work As Expected Why?¶

auto lightObj = Light(e);
lightObj.SetDiffuseColor(_ecm, newColor);
lightObj.SetSpecularColor(_ecm, newColor);

if gazebo sim github Light.cc actual code you will understand why

actual api code

void Light::SetDiffuseColor(EntityComponentManager &_ecm,
   const math::Color &_color)
{
  auto lightCmd =
    _ecm.Component<components::LightCmd>(this->dataPtr->id);

  msgs::Light lightMsg;   ///problem is here it created a entire new msg
  msgs::Set(lightMsg.mutable_diffuse(), _color);
  if (!lightCmd)
  {
    _ecm.CreateComponent(
        this->dataPtr->id,
        components::LightCmd(lightMsg));
  }
  else
  {
    lightCmd->Data() = lightMsg;
  }
}

void Light::SetSpecularColor(EntityComponentManager &_ecm,
   const math::Color &_color)
{
  auto lightCmd =
    _ecm.Component<components::LightCmd>(this->dataPtr->id);

  msgs::Light lightMsg; ///problem is here it created a entire new msg
  msgs::Set(lightMsg.mutable_specular(), _color);
  if (!lightCmd)
  {
    _ecm.CreateComponent(
        this->dataPtr->id,
        components::LightCmd(lightMsg));
  }
  else
  {
    lightCmd->Data() = lightMsg;
  }
}

msgs::Light lightMsg; problem is here it created a entire new msg means new light because of which we can change our light certain color property rather end up making new light so be very carefull using direct class of model,world,light etc
