MoveModelDirectRos Plugin¶
As we understood in the last method that ros-gz-brige has limited supported msgs. So we are going undertand to add direct ros2 rclcpp into gazebo sim system plugin.
rclcpp we can direct use standard ros2 publisher/subscriber,service/client rclcpp everything of a ros2 node syntex is same.
Need A Different thread for ros2 in plugin why?¶
ros executor code snap
rclcpp::executors::SingleThreadedExecutor executor;
executor.add_node(node);
executor.spin(); // blocks this thread, one callback at a time

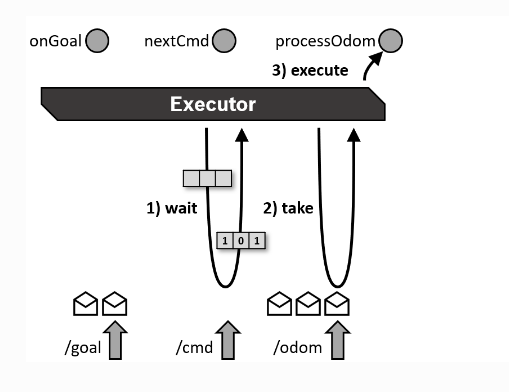

image beautifully display how ros executors work. For example 2 msg are received from topic than ros executors send one method to ros subscriber callback waits for it to process that is the time when it block main thread & once processed sends next msg.
executor.spin() blocking loop until the node shuts down, centralizing event handling for subscriptions, timers, and services within a thread.

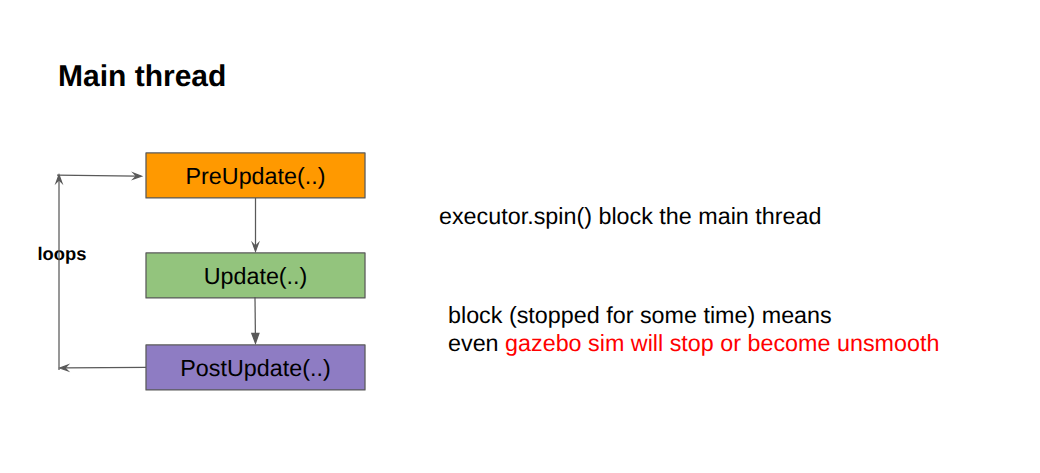

that means using executor.spin() on gazebo sim will also get blocked(stop for some time) or become unsmooth

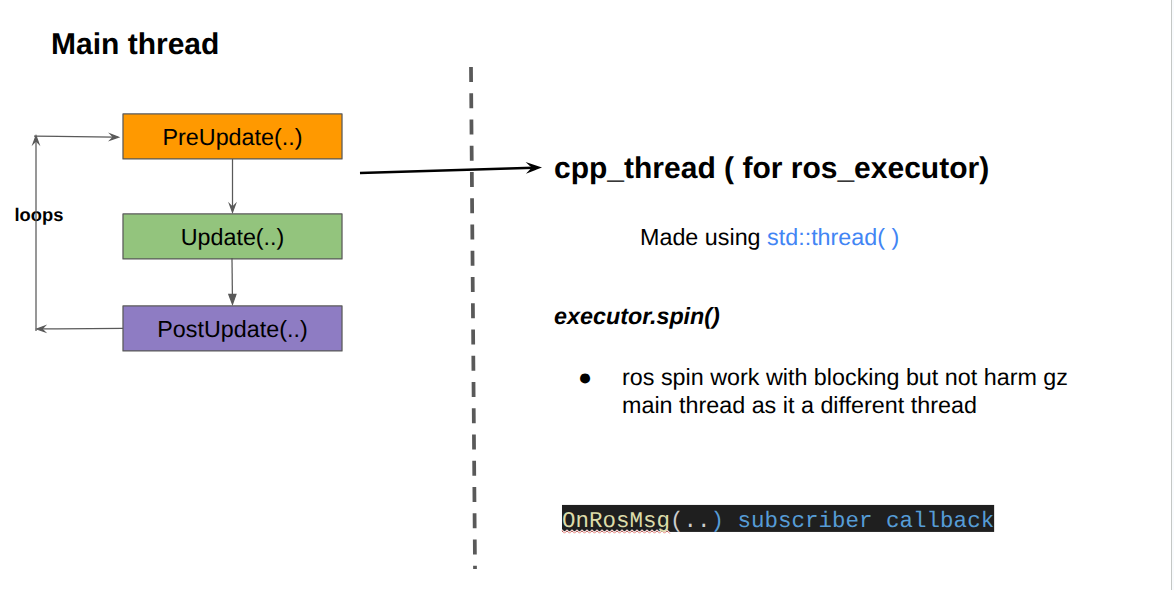

Add New Thread For ros_executor¶
so simple solution is make another thread for ros2 using std::thread()
ros spin work with blocking but not harming gz main thread as it a different thread
everthing of ros run on the new thread (name: cpp_thread) means OnRosMsg(...) subscriber callback is also part of new thread
Code¶
create the ros2 node & create singe threaded executor. More on ros2 executors
// Create the ROS 2 node
this->ros_node_ = std::make_shared<rclcpp::Node>("gz_sim_move_model_plugin");
// this->executor_ = std::make_shared<rclcpp::executors::MultiThreadedExecutor>();
this->ros_executor_ = std::make_shared<rclcpp::executors::SingleThreadedExecutor>();
this->ros_executor_->add_node(this->ros_node_);
lamda function contain ros_executor->spin()
std::thread() used for creating the new thread
//lamda function having ros spin
auto ros_thread_spin = [this]()
{
this->ros_executor_->spin();
};
//make a new thread for ros spin
this->cpp_thread = std::thread(ros_thread_spin);
.hh file
#ifndef SYSTEM_MOVE_MODEL_DIRECTROS_PLUGIN_MODEL_HH_
#define SYSTEM_MOVE_MODEL_DIRECTROS_PLUGIN_MODEL_HH_
//! [header]
#include <gz/sim/System.hh>
#include <gz/math/Vector3.hh>
// ROS 2 Includes
#include <rclcpp/rclcpp.hpp>
#include <std_msgs/msg/float64.hpp>
namespace gz
{
namespace sim
{
namespace systems
{
/// \brief plugin to move a model
/// plugin interface.
class MoveModelDirectRos :
// This class is a system.
public gz::sim::System,
public gz::sim::ISystemConfigure,
// This class also implements the ISystemPreUpdate interface.
public gz::sim::ISystemUpdate
{
public:
MoveModelDirectRos();
~MoveModelDirectRos() override;
void Configure(const Entity &_entity,
const std::shared_ptr<const sdf::Element> &_sdf,
EntityComponentManager &_ecm,
EventManager &_eventMgr) override;
void Update(const UpdateInfo &_info,
EntityComponentManager &_ecm) override;
private:
std::string modelName;
std::string rosTopicName;
double zVelocity{0.0};
Entity targetEntity{kNullEntity};
// ROS 2 Members
rclcpp::Node::SharedPtr ros_node_;
rclcpp::Subscription<std_msgs::msg::Float64>::SharedPtr sub_;
// rclcpp::executors::MultiThreadedExecutor::SharedPtr executor_
rclcpp::executors::SingleThreadedExecutor::SharedPtr ros_executor_; //Executor to spin the controller
std::thread cpp_thread; //std thread to make new thread
/* ROS 2 message callback */
/**
* @brief ROS 2 callback function for received velocity messages.
* @param _msg The shared pointer to the incoming std_msgs/Float64 message.
*/
void OnRosMsg(const std_msgs::msg::Float64::SharedPtr _msg);
};
}
}
}
//! [header]
#endif
.cc file
#include "tutorial_gazebo_plugins/MoveModelDirectRos.hh"
#include "gz/sim/Model.hh"
#include "gz/sim/Util.hh"
#include "gz/sim/components/LinearVelocity.hh"
#include "gz/sim/components/LinearVelocityCmd.hh"
#include "gz/sim/components/Name.hh"
#include <gz/sim/System.hh>
#include <gz/plugin/Register.hh>
#include <rclcpp/executors.hpp> // New: ROS 2 includes
using namespace gz;
using namespace sim;
using namespace systems;
MoveModelDirectRos::MoveModelDirectRos(){
std::cout<<"MoveModelDirectRos Plugin Started!!"<<std::endl;
}
MoveModelDirectRos::~MoveModelDirectRos() {
std::cout<<"MoveModelDirectRos Plugin Stopped!!"<<std::endl;
}
void MoveModelDirectRos::Configure(const Entity &_entity,
const std::shared_ptr<const sdf::Element> &_sdf,
EntityComponentManager &_ecm,
EventManager &/*_eventMgr*/)
{
// --- Gazebo Sim Configuration ---
if (!_sdf->HasElement("model_name"))
{
gzerr << "MoveModel plugin requires a <model_name> element." << std::endl;
return;
}
this->modelName = _sdf->Get<std::string>("model_name");
gzmsg << "Target Model Name: " << this->modelName << std::endl;
if (!_sdf->HasElement("ros_topic_name"))
{
gzerr << "MoveModel plugin requires a <topic_name> element." << std::endl;
return;
}
this->rosTopicName = _sdf->Get<std::string>("ros_topic_name");
gzmsg << "Cmd vel Z ROS 2 Topic Name: " << this->rosTopicName << std::endl;
if (_sdf->HasElement("z_velocity"))
{
this->zVelocity = _sdf->Get<double>("z_velocity");
}
gzmsg << "Initial Z Velocity: " << this->zVelocity << " m/s" << std::endl;
// --- ROS 2 Initialization ---
// Initialize ROS 2 (safe to call multiple times)
if (!rclcpp::ok())
{
// Pass in dummy arguments.
rclcpp::init(0, nullptr);
}
// ### Explanation ###
/*
ros executor code snap:
rclcpp::executors::SingleThreadedExecutor executor;
executor.add_node(node);
executor.spin(); // blocks this thread, one callback at a time
gz main thread:
------
in loop:
PreUpdate() -> using ros spin (executor.spin()) in main thread will block gazebo sim
Update()
PostUpdate()
solution:
main gz thread --->(make another thread for ros) using std::thread
------ |
| -> ros spin work with blocking but not harm gz main thread
in loop: | as it a different thread
PreUpdate() -> no blocking |
Update() | -> std::thread -> make new thread cpp_thread having ros_executor->spin()
PostUpdate() |
*/
// Create the ROS 2 node
this->ros_node_ = std::make_shared<rclcpp::Node>("gz_sim_move_model_plugin");
// this->executor_ = std::make_shared<rclcpp::executors::MultiThreadedExecutor>();
this->ros_executor_ = std::make_shared<rclcpp::executors::SingleThreadedExecutor>();
this->ros_executor_->add_node(this->ros_node_);
//lamda function having ros spin
auto ros_thread_spin = [this]()
{
this->ros_executor_->spin();
};
//make a new thread for ros spin
this->cpp_thread = std::thread(ros_thread_spin);
// Create the ROS 2 subscriber
this->sub_ = this->ros_node_->create_subscription<std_msgs::msg::Float64>(
this->rosTopicName,
10, // QoS history depth
std::bind(&MoveModelDirectRos::OnRosMsg, this, std::placeholders::_1)
);
gzmsg << "ROS 2 Subscriber created for topic: " << this->rosTopicName << std::endl;
}
void MoveModelDirectRos::OnRosMsg(const std_msgs::msg::Float64::SharedPtr _msg){
// Extract the double value from the ROS 2 Float64 message
this->zVelocity = _msg->data;
gzdbg << "Received new Z-velocity command from ROS 2: " << this->zVelocity << std::endl;
}
void MoveModelDirectRos::Update(const UpdateInfo &_info,
EntityComponentManager &_ecm)
{
// Only run if the simulation is not paused
if (_info.paused)
return;
// 1. Find the target model entity by name (if not found yet)
if (this->targetEntity == kNullEntity)
{
auto entityOpt = _ecm.EntityByName(this->modelName);
if (!entityOpt.has_value())
{
gzdbg << "Model [" << this->modelName
<< "] not found yet. Skipping velocity application." << std::endl;
return;
}
this->targetEntity = entityOpt.value();
gzmsg << "Found target model entity: " << this->targetEntity << std::endl;
}
// 2. Set the Z-axis linear velocity: (0, 0, zVelocity)
const gz::math::Vector3d vel(0.0, 0.0, this->zVelocity);
// 3. Apply the velocity command component
_ecm.SetComponentData<components::LinearVelocityCmd>(this->targetEntity,{vel});
}
// Register the plugin with Gazebo Sim
GZ_ADD_PLUGIN(gz::sim::systems::MoveModelDirectRos,
gz::sim::System,
gz::sim::ISystemConfigure,
gz::sim::ISystemUpdate)
GZ_ADD_PLUGIN_ALIAS(gz::sim::systems::MoveModelDirectRos,
"gz::sim::systems::MoveModelDirectRos")
every other thing is same as previous MoveModel Using ros-gz-birdge
