Move Model Using ROS GZ Bridge¶

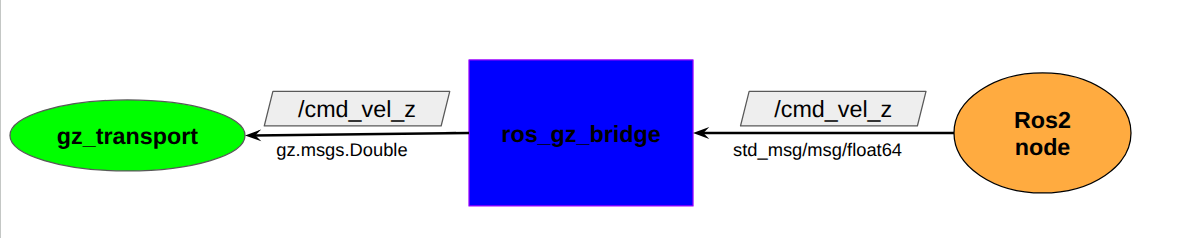

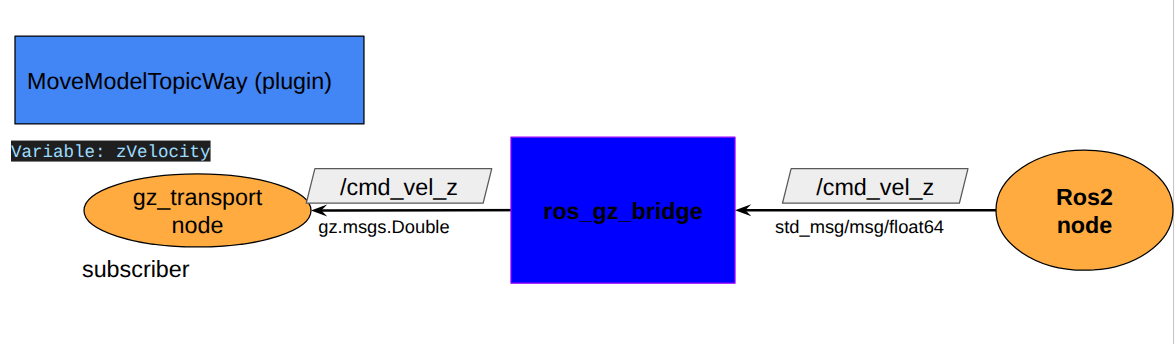

From Now on we are using ros_ws for all of our plugin. This plugin is just copy paste of MoveModelTopicWay into ros_ws & addition is we are using ros_gz_bridge to map ros2 topic with gazebo topic & control the movel model zVelocity. So the same system plugin on addition is ros2 topic.
ros gz bridge sytax¶
The ROS message type is followed by an @, [, or ] symbol where:
-
@ is a bidirectional bridge.
-
[ is a bridge from Gazebo to ROS.
-
] is a bridge from ROS to Gazebo.
it sometime confusing better to use yaml file way
- ros_topic_name: /cmd_vel_z
gz_topic_name: /cmd_vel_z
ros_type_name: std_msgs/msg/Float64
gz_type_name: gz.msgs.Double
direction: BIDIRECTIONAL
Important:¶
there are only limited set of msg supported for ros gz brige
more here details here in the doc list of supported msg
Plugin¶
ros2 launch python file
from launch import LaunchDescription
from launch.actions import DeclareLaunchArgument, ExecuteProcess
from launch.substitutions import LaunchConfiguration, FindExecutable
from launch_ros.actions import Node
from launch import LaunchDescription
from launch.actions import SetEnvironmentVariable, IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
import os
from ament_index_python.packages import get_package_share_directory
from launch.substitutions import PathJoinSubstitution
from launch_ros.substitutions import FindPackageShare
def generate_launch_description():
plugin_pkg_path = FindPackageShare('tutorial_gazebo_plugins')
set_plugin_path = SetEnvironmentVariable(
'GZ_SIM_SYSTEM_PLUGIN_PATH',
PathJoinSubstitution([plugin_pkg_path, 'plugins'])
)
world_path = os.path.join(
get_package_share_directory('yt_tutorial_gazebo_ros'),
'worlds',
'move_model_topic_way.sdf',
)
ros_gz_sim_share = get_package_share_directory('ros_gz_sim')
gz_sim = IncludeLaunchDescription(
PythonLaunchDescriptionSource(
os.path.join(ros_gz_sim_share, 'launch', 'gz_sim.launch.py')
),
launch_arguments={
# see next section for -v
'gz_args': f'-r -v4 {world_path}',
}.items(),
)
# gz_to_ros_bridge = Node(
# package='ros_gz_bridge',
# executable='parameter_bridge',
# name='z_velocity_bridge',
# output='screen',
# arguments=[
# 'cmd_vel_z@gz.msgs.Double@std_msgs/msg/Float64'
# ],
# )
config_file_path = os.path.join(
get_package_share_directory('yt_tutorial_gazebo_ros'),
'configs',
'model_topic_way_bridge.yaml'
)
gz_to_ros_bridge = Node(
package='ros_gz_bridge',
executable='parameter_bridge',
name='z_velocity_bridge',
output='screen',
parameters=[{
'config_file': config_file_path
}],
)
return LaunchDescription([set_plugin_path, gz_sim, gz_to_ros_bridge])
.sdf plugin part
.hh file
#ifndef SYSTEM_PLUGIN_MODEL_HH_
#define SYSTEM_PLUGIN_MODEL_HH_
//! [header]
#include <gz/sim/System.hh> // to inherit system
#include "gz/sim/Model.hh" // for Model component
#include "gz/sim/components/LinearVelocity.hh" // for linear velocity
#include "gz/sim/components/LinearVelocityCmd.hh" // for LinearVelocityCmd component
#include "gz/sim/components/Name.hh" // for Name component
#include <gz/plugin/Register.hh> //for GZ_ADD_PLUGIN_ALIAS()
#include <gz/msgs/Utility.hh> //for msg
#include <gz/transport/Node.hh> //for gz transport node
#include <gz/math/Vector3.hh>
#include <gz/msgs/double.pb.h> // Include the Double message type
namespace gz
{
namespace sim
{
namespace systems
{
/// \brief plugin to move a model
/// plugin interface.
class MoveModelTopicWay :
// This class is a system.
public gz::sim::System,
public gz::sim::ISystemConfigure,
// This class also implements the ISystemPreUpdate interface.
public gz::sim::ISystemUpdate
{
public:
MoveModelTopicWay();
~MoveModelTopicWay() override;
void Configure(const Entity &_entity,
const std::shared_ptr<const sdf::Element> &_sdf,
EntityComponentManager &_ecm,
EventManager &_eventMgr) override;
void Update(const UpdateInfo &_info,
EntityComponentManager &_ecm) override;
private:
std::string modelName;
std::string topicName;
double zVelocity{0.0};
Entity targetEntity{kNullEntity};
gz::transport::Node node; // GZ Transport node
/* transport msg callback */
void OnTransportMsg(const gz::msgs::Double & _msg);
};
}
}
}
//! [header]
#endif
.cc file
#include "MoveModelTopicWay.hh"
using namespace gz;
using namespace sim;
using namespace systems;
MoveModelTopicWay::MoveModelTopicWay() {
std::cout<<"MoveModelTopicWay Plugin Started!!"<<std::endl;
}
MoveModelTopicWay::~MoveModelTopicWay(){
std::cout<<"MoveModelTopicWay Plugin stopped!!"<<std::endl;
}
void MoveModelTopicWay::Configure(const Entity &_entity,
const std::shared_ptr<const sdf::Element> &_sdf,
EntityComponentManager &_ecm,
EventManager &/*_eventMgr*/)
{
// 1. Read the target model name from SDF
if (!_sdf->HasElement("model_name"))
{
gzerr << "MoveModel plugin requires a <model_name> element." << std::endl;
return;
}
this->modelName = _sdf->Get<std::string>("model_name");
gzmsg << "Target Model Name: " << this->modelName << std::endl;
if (!_sdf->HasElement("topic_name"))
{
gzerr << "MoveModel plugin requires a <topic_name> element." << std::endl;
return;
}
this->topicName = _sdf->Get<std::string>("topic_name");
gzmsg << "Cmd vel z Topic Name: " << this->topicName << std::endl;
this->node.Subscribe(this->topicName, &MoveModelTopicWay::OnTransportMsg, this);
if (_sdf->HasElement("z_velocity"))
{
this->zVelocity = _sdf->Get<double>("z_velocity");
}
gzmsg << "Initial Z Velocity: " << this->zVelocity << " m/s" << std::endl;
}
void MoveModelTopicWay::OnTransportMsg(const gz::msgs::Double & _msg){
// Directly extract the double value from the message
this->zVelocity = _msg.data();
gzdbg << "Received new Z-velocity command: " << this->zVelocity << std::endl;
}
void MoveModelTopicWay::Update(const UpdateInfo &_info,
EntityComponentManager &_ecm)
{
// Only run if the simulation is not paused
if (_info.paused)
return;
// 1. Find the target model entity by name (if not found yet)
if (this->targetEntity == kNullEntity)
{
auto entityOpt = _ecm.EntityByName(this->modelName);
if (!entityOpt.has_value())
{
gzdbg << "Model [" << this->modelName
<< "] not found yet. Skipping velocity application." << std::endl;
return;
}
this->targetEntity = entityOpt.value();
gzmsg << "Found target model entity: " << this->targetEntity << std::endl;
}
//method 1
// 2.Get / create LinearVelocity component
// auto velComp =
// _ecm.Component<components::LinearVelocityCmd>(this->targetEntity);
// if (!velComp)
// {
// velComp = _ecm.CreateComponent(this->targetEntity,
// components::LinearVelocityCmd());
// gzmsg << "Added LinearVelocity component to model: "
// << this->modelName << std::endl;
// }
// if (!velComp)
// {
// gzerr << "Failed to create/get LinearVelocity component for model ["
// << this->modelName << "]." << std::endl;
// return;
// }
// // 3.Set the Z-axis linear velocity: (0, 0, zVelocity)
// const gz::math::Vector3d vel(0.0, 0.0, this->zVelocity);
// velComp->Data() = vel;
/// or
// method 2
//instate of step 2 & 3 directly run
const gz::math::Vector3d vel(0.0, 0.0, this->zVelocity);
_ecm.SetComponentData<components::LinearVelocityCmd>(this->targetEntity,{vel});
}
// Register the plugin with Gazebo Sim
GZ_ADD_PLUGIN(gz::sim::systems::MoveModelTopicWay,
gz::sim::System,
gz::sim::ISystemConfigure,
gz::sim::ISystemUpdate)
GZ_ADD_PLUGIN_ALIAS(gz::sim::systems::MoveModelTopicWay,
"gz::sim::systems::MoveModelTopicWay")
